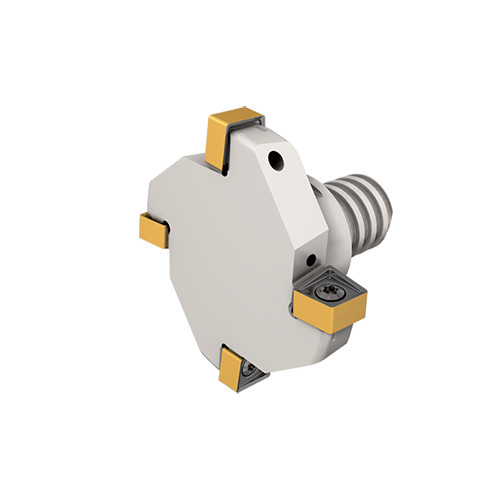

ETS D050-07-XN06-MMT15
| Cutting Diameter (DC) | 1.961″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.276″ | Tool Type | Double-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 0.492″ | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Cutting Item Count (CICT) | 6 |
| Connection Diameter Machine Side (DCONMS) | 0.941″ | Functional Length (LF) | 0.748″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Master Insert Identification (MIID) | XNMU 060304-PNTN |
| Overall Length (OAL) | 1.417″ | Drive Size (DRVS) | 0.787″ |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | T-SLOT endmills with a MULTI-MASTER threaded connection, mount XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
193
