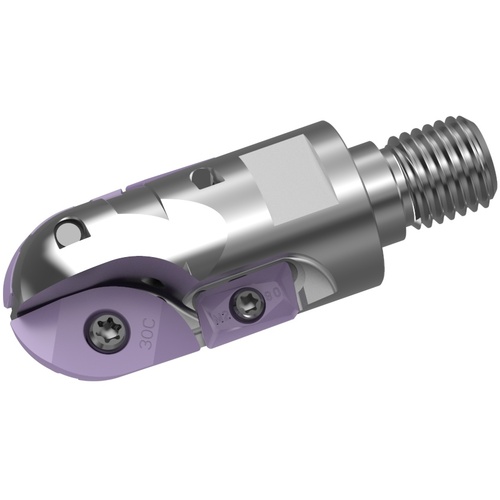

SRM2300AM16L60 INDX EM
Indexable End Mill; 30 mm Dia. × 44 mm LOC × 17 mm Shank Dia. × 83 mm OAL ; 2 FL ; Series SRM2
| Cutting Diameter (DC/DCX) | 30 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 30 mm | Body Diameter (BD) | 28.3 mm |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 44 mm | Series/List # | SRM2 |
| Overall Length (OAL) | 83 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Functional Length (LF) | 60 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
