VPX300R08005CA06330 EM

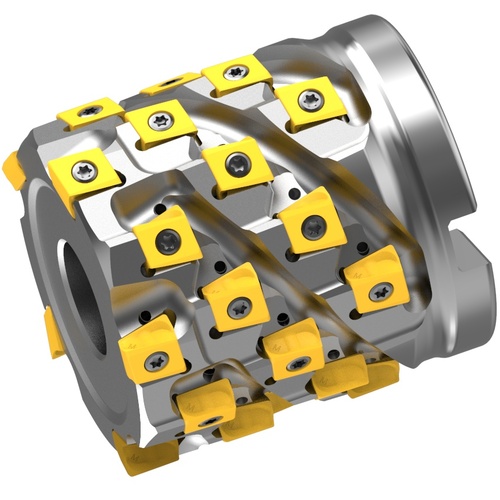

Indexable End Mill; 80 mm Dia. × 63 mm LOC × 31.75 mm Shank Dia. ; 5 FL ; 90 Degrees ; Series VPX300_SHELL_INCH
| Cutting Diameter (DC/DCX) | 80 mm | Flute Count (NOF) | 5 |
| Cutting Diameter (DC) | 80 mm | Body Diameter (BD) | 76 mm |
| Cutting Item Count (CICT) | 30 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.45 Degrees | Series/List # | VPX300_SHELL_INCH |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Functional Length (LF) | 85 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
