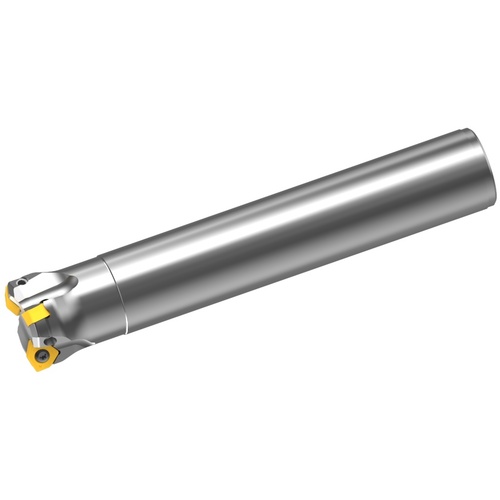

WJX14R5003SA42L INDX EM
Indexable End Mill; 34.5 mm Dia. × 2 mm LOC × 42 mm Shank Dia. ; 3 FL ; Series WJX
| Cutting Diameter (DC/DCX) | 34.5 mm | Functional Length (LF) | 250 mm |
| Cutting Diameter (DC) | 34.5 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2 mm | Series/List # | WJX |
| Ramping Angle Maximum (RMPX) | 4.4 Degrees | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 42 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Head Length (LH) | 50 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
