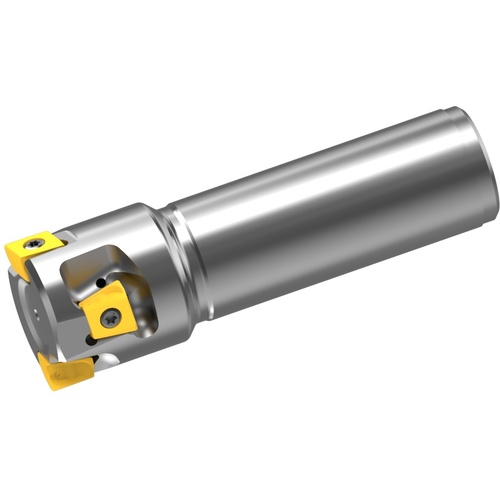

VPX300R402SA32S02104 EM
Indexable End Mill; 40 mm Dia. × 21 mm LOC × 32 mm Shank Dia. ; 2 FL ; 90 Degrees ; Series VPX300_LONG
| Cutting Diameter (DC/DCX) | 40 mm | Functional Length (LF) | 125 mm |
| Cutting Diameter (DC) | 40 mm | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 21 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.06 Degrees | Series/List # | VPX300_LONG |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Head Length (LH) | 45 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
