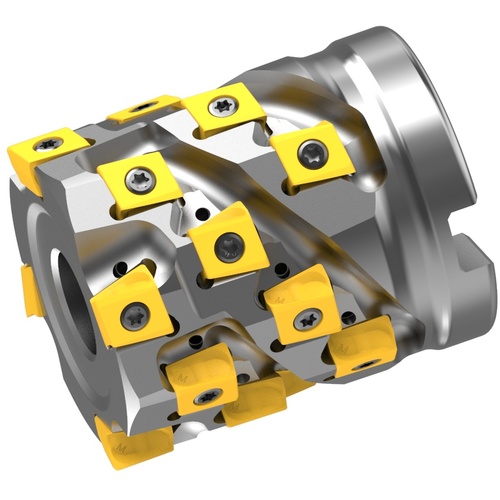

VPX300-063A04A052R20 EM
Indexable End Mill; 63 mm Dia. × 52 mm LOC × 27 mm Shank Dia. ; 4 FL ; 90 Degrees ; Series VPX300_SHELL_MM
| Cutting Diameter (DC/DCX) | 63 mm | Flute Count (NOF) | 4 |
| Cutting Diameter (DC) | 63 mm | Body Diameter (BD) | 76 mm |
| Cutting Item Count (CICT) | 20 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 52 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.6 Degrees | Series/List # | VPX300_SHELL_MM |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Functional Length (LF) | 75 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
