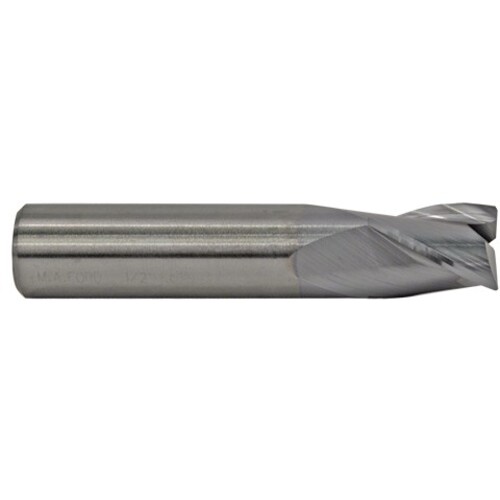

9/32 TuffCut , Stub Length, Center Cutting, 3 Fl End Mill, TiCN Coated Alternate Manufacture # 11381
Corner Radius End Mill; 9/32″ Dia. × 1/2″ LOC × 5/16″ Shank Dia. × 2″ OAL ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 9/32″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | TiCN | Decimal Equivalent | 0.28125″ |
| Flute Count (NOF) | 3 |
Product Features
| Family Description | Alternate Manufacture # 11381 | Country of Origin | USA |
Shipping Info
Package Length
2.00000
Package Width
.39400
Package Weight
.071
