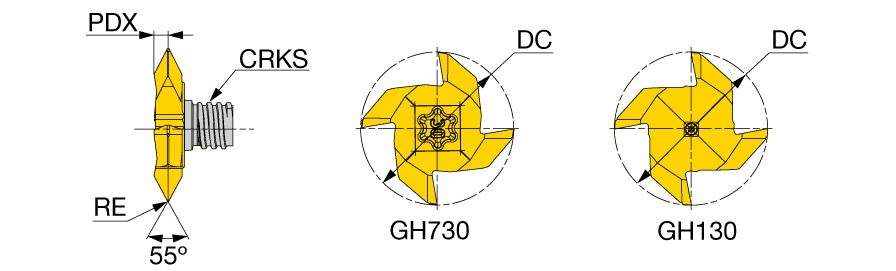

VTR220L24W14-4S08 GH730
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Tool Type | Solid carbide thread mills |
| Cutting Diameter (DC) | 0.8543″ | Threads per Inch Maximum (TPIX) | 11.5 |
| Flute Count (NOF) | 4 | Threads per Inch Minimum (TPIN) | 16 |
| Coating | TiCNO | Thread Pitch Minimum (TPN) | 1.814 mm |
| Grade | GH730 | Thread Pitch Maximum (TPX) | 2.309 mm |
| Corner Radius (RE) | 0.008″ | Functional Length (LF) | 0.093″ |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Interchangeable solid carbide milling heads for 55 deg partial profile thread milling. | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping Wrench sold separately. |
