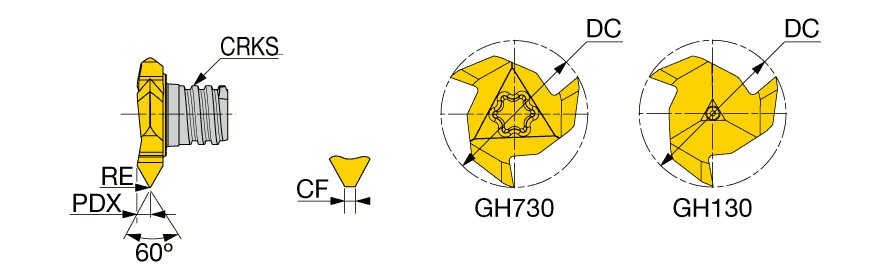

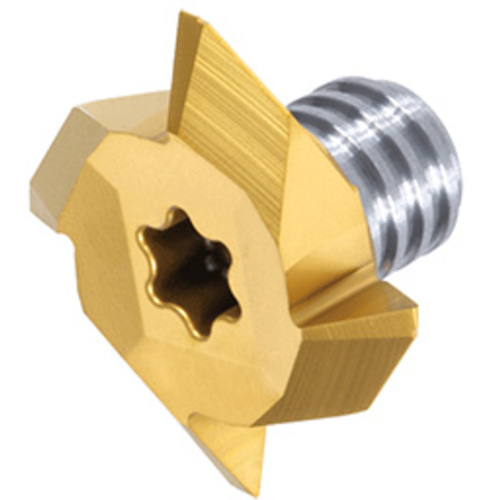

VTR160L12IS05-3S06 GH130
| Connection Thread Nominal Size Machine Side (THSZMS) | S06 | Tool Type | Solid carbide thread mills |
| Cutting Diameter (DC) | 0.6181″ | Threads per Inch Maximum (TPIX) | 12.7 |
| Flute Count (NOF) | 3 | Threads per Inch Minimum (TPIN) | 50.8 |
| Coating | TiCNO | Thread Pitch Minimum (TPN) | 0.4 mm |
| Grade | GH130 | Thread Pitch Maximum (TPX) | 2 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Functional Length (LF) | 0.07″ |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Interchangeable solid carbide milling heads for 60 deg partial profile thread milling. | Country of Origin | Japan |
| Remarks | Torque: Recommended torque (Nm) for clamping Wrench sold separately. |
Shipping Info
Package Weight
0.060
