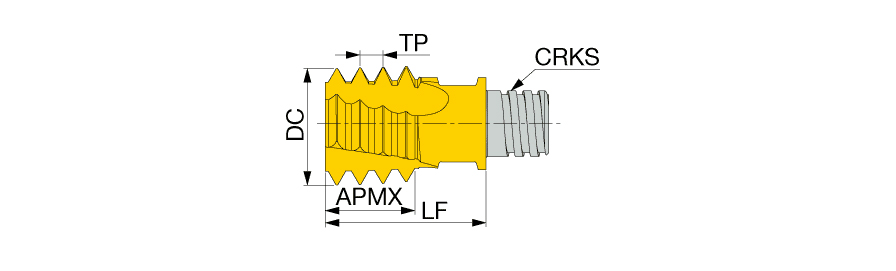

VMT160L13W14-4S08 AH725
| Threads per Inch (TPI) | 14 | Tool Type | Solid carbide thread mills |
| Depth of Cut Maximum (APMX) | 1/2″ | Threads per Inch Maximum (TPIX) | 14 |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Threads per Inch Minimum (TPIN) | 14 |
| Cutting Diameter (DC) | 0.6299″ | Thread Pitch Minimum (TPN) | 1.814 mm |
| Flute Count (NOF) | 4 | Thread Pitch Maximum (TPX) | 1.814 mm |
| Coating | TiAlN | Functional Length (LF) | 0.787″ |
| Grade | AH725 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 0.787″ |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Carbide milling heads with a threaded connection for internal and external 55 deg BSW thread profile. | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping Wrench sold separately. |
Shipping Info
Package Weight
0.190
