TEB030E4L-06/09C06CFH57 AH710

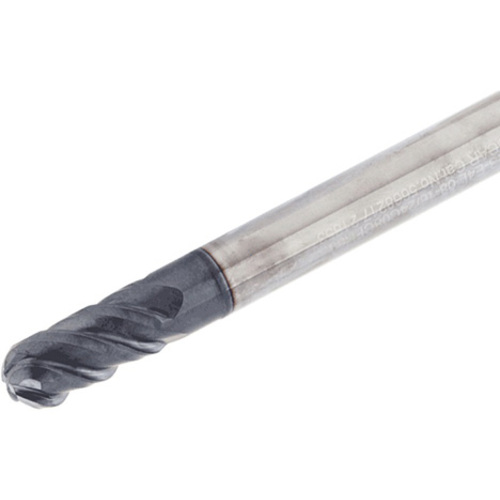

BN End Mill; 3 mm Dia. × 6 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; TiAlN

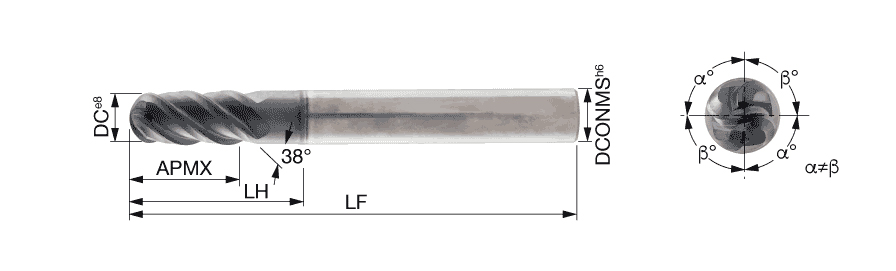

| Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 6 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 1.5 mm |
| Cutting Edge Material | Carbide | Grade | AH710 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees |
Product Features
| Family Description | 4 flute chatter dampening ball nose endmill, variable pitch, relieved neck type, for high hardened metal | Country of Origin | Israel |
Shipping Info
Package Weight
22
