TEB060A2-10W06-E57 AH725

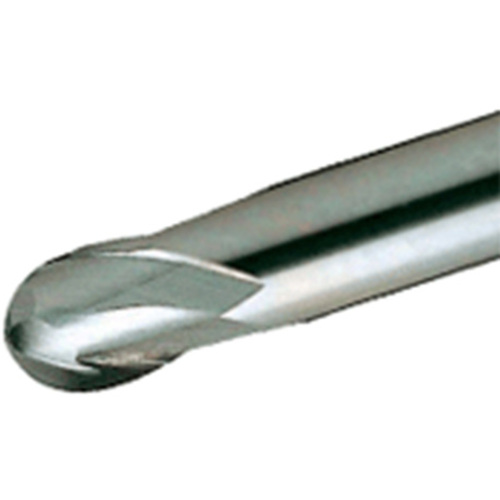

BN End Mill; 6 mm Dia. × 10 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; Carbide ; TiAlN

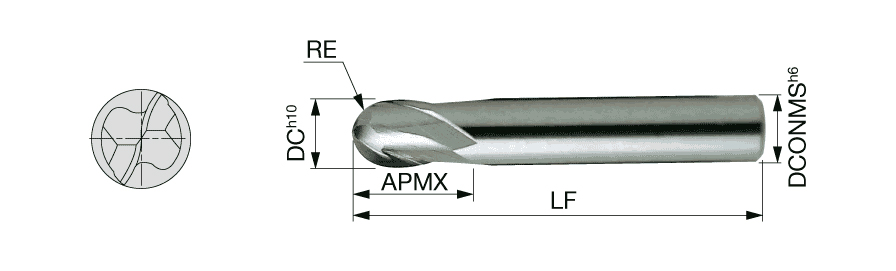

| Cutting Diameter (DC) | 6 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 10 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 3 mm |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | Economical 2 flute ball nose endmill, 30 deg helix angle, economical short type | Country of Origin | Israel |
Shipping Info
Package Weight
0.5
