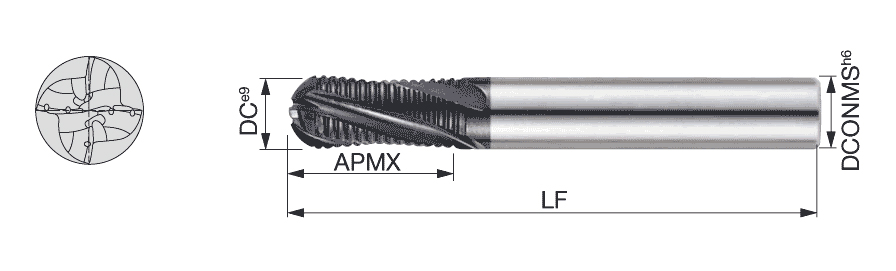

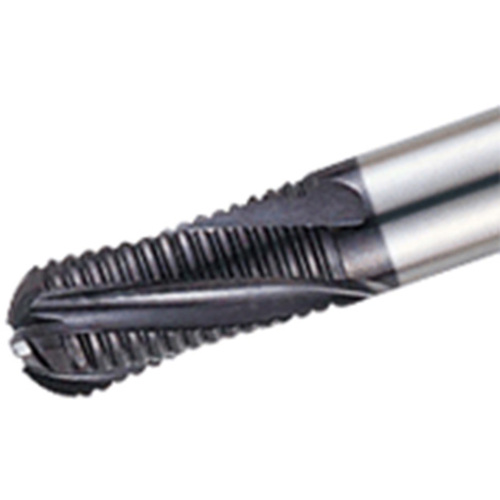

TEBRF060T3-16C06M57 AH750
BN End Mill; 6 mm Dia. × 16 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 16 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 3 mm |
| Cutting Edge Material | Carbide | Grade | AH750 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Family Description | 3 or 4 flute ball nose roughing endmill, 20 deg helix angle, long edge type, for hardened steel up to 55 HRC | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.042
