TEB040A2-04/08C06H70 AH750

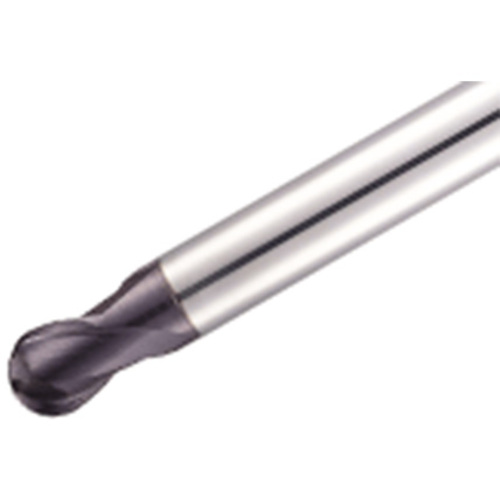

BN End Mill; 4 mm Dia. × 4 mm LOC × 6 mm Shank Dia. × 70 mm OAL ; 2 FL ; Carbide ; TiAlN

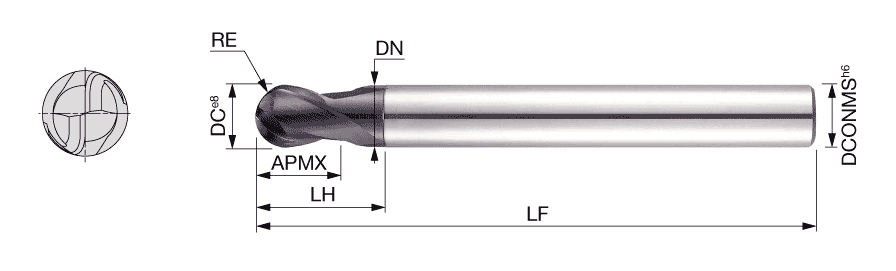

| Cutting Diameter (DC) | 4 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 4 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 70 mm | Corner Radius (RE) | 2 mm |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 3.9 mm |
| Coating | TiAlN | Grade | AH750 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 2 flute ball nose endmill, 30 deg helix angle, short type, for hardened steel with 55 to 70 HRC | Country of Origin | CHINA |
Shipping Info
Package Weight
0.066
