TEB100A2-18/21/1.5C12M130 AH750

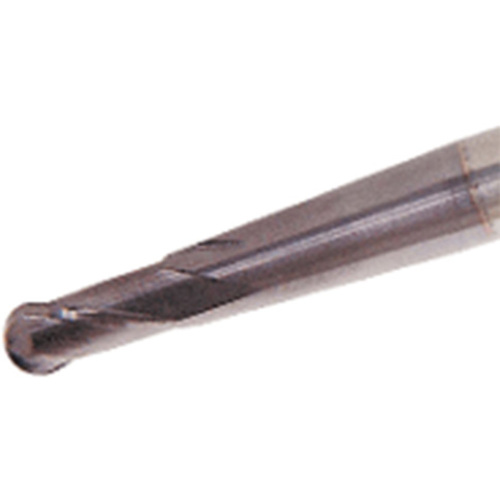

BN End Mill; 10 mm Dia. × 18 mm LOC × 12 mm Shank Dia. × 130 mm OAL ; 2 FL ; Carbide ; TiAlN

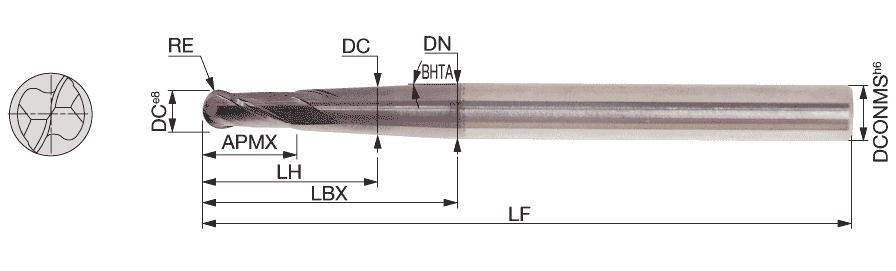

| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 18 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 130 mm | Corner Radius (RE) | 5 mm |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 12 mm |
| Coating | TiAlN | Grade | AH750 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 2 flute ball nose endmill, tapered neck type, for hardened steel up to 65 HRC | Country of Origin | S.Korea |
