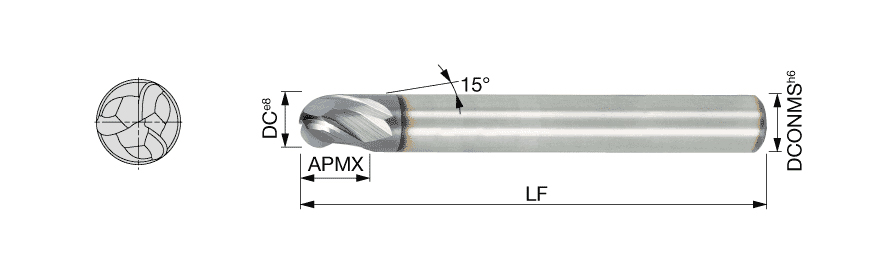

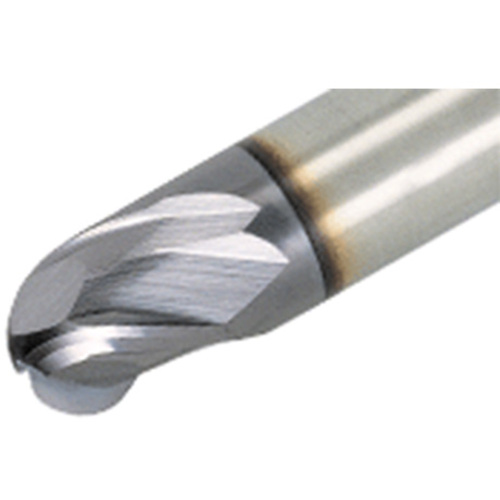

TEB100A3-13C10-72 AH725
BN End Mill; 10 mm Dia. × 13 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 3 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 13 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 72 mm | Corner Radius (RE) | 5 mm |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | 3 flute ball nose endmill, 30 deg helix angle, short type | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
