TEB050A4-08C06-57 AH725

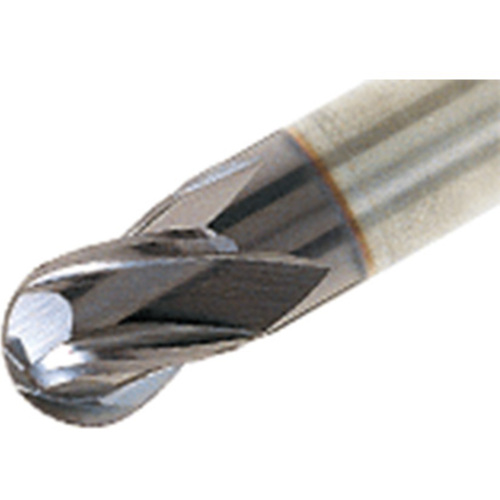

BN End Mill; 5 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; TiAlN

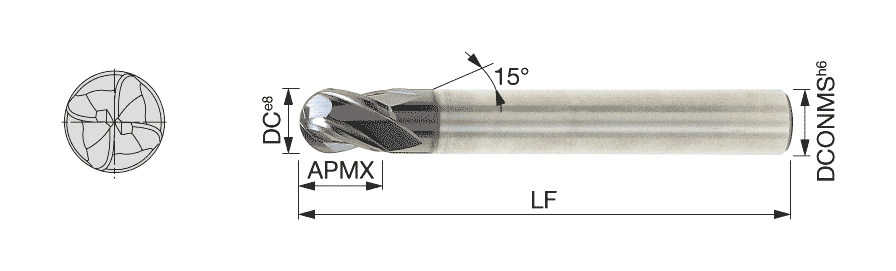

| Cutting Diameter (DC) | 5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 2.5 mm |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 5 mm |
| Coating | TiAlN | Grade | AH725 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 4 flute ball nose endmill, 30 deg helix angle, short type | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.055
