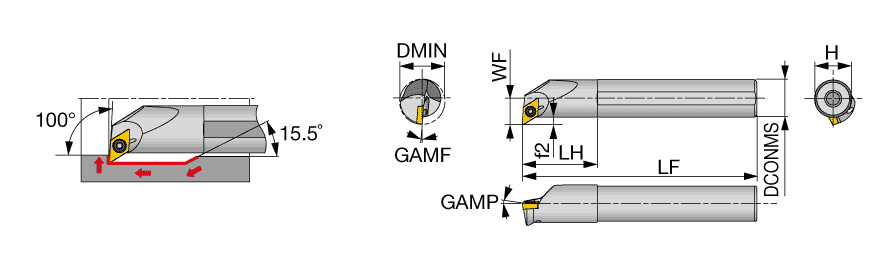

E08-SDXXL2-D11
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 5″ | Rake Angle Axial (GAMP) | -13.5 Degrees |
| Head Length (LH) | 1.063″ | Rake Angle Radial (GAMF) | -11 Degrees |
| Shank Height (H) | 0.475″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.406″ | Body Material | Carbide |
| Master Insert Identification (MIID) | DXGU221R | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.688″ |
Product Features
| Family Description | Screw-on boring bar for 55 deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | The right hand insert (R) is used for the left hand toolholders (SDXXL07 D**), and the left hand insert (L) is used for the right hand toolholders (SDXXR07 D**). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.463
