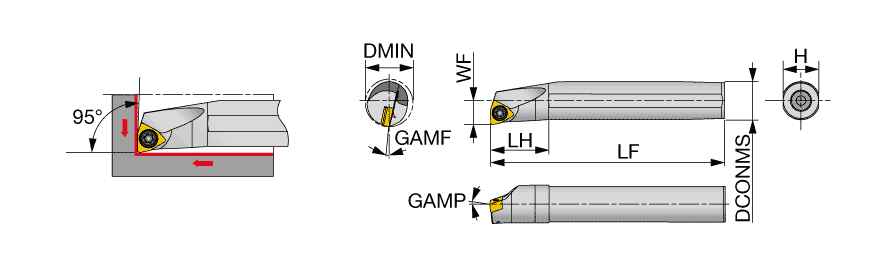

A12-SWLXL2-D16
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | For 80deg Trigon insert | For Miniature machining | |
| Functional Length (LF) | 7″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1.438″ | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 0.725″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 0.593″ | Tool Type | TOOLHOLDERS - FOR BORING & INTERNAL PROFILING |
| Master Insert Identification (MIID) | WXGU221R | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on boring bar for trigon insert with 6 edges | Country of Origin | JAPAN |
| Remarks | The right hand insert (R) is used for the left hand toolholders (SWLXL04 D**), and the left hand insert (L) is used for the right hand toolholders (SWLXR04 D**). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.833
