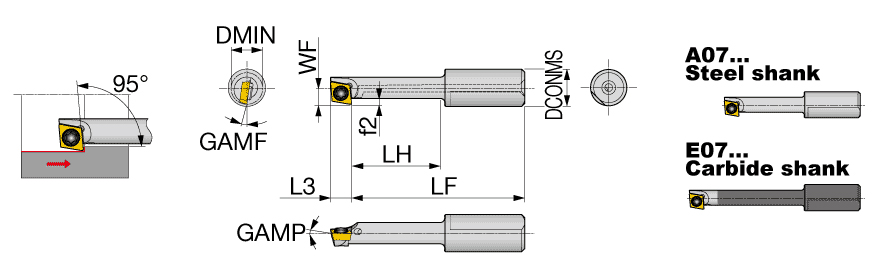

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Application | | For 75deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 1.76″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1.083″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.126″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Master Insert Identification (MIID) | EPGT4.51.80.5 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.217″ | Measurement Type | Inch |
Product Features

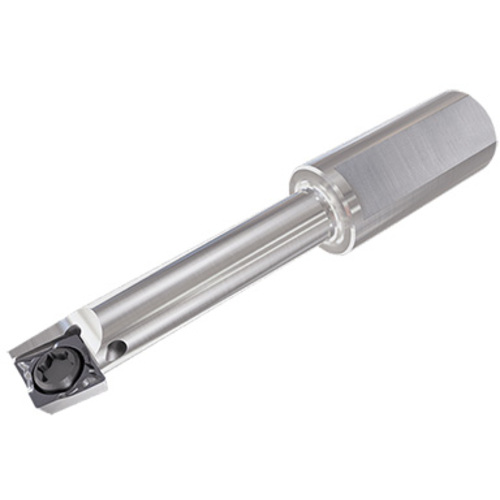

| Family Description | TinyMiniTurn screw-on back boring bar, for positive 75 degree rhombic insert. | Country of Origin | Japan |
| Remarks | Use the right hand insert (R) for the right hand tool holder (A/E SEZPR). |
