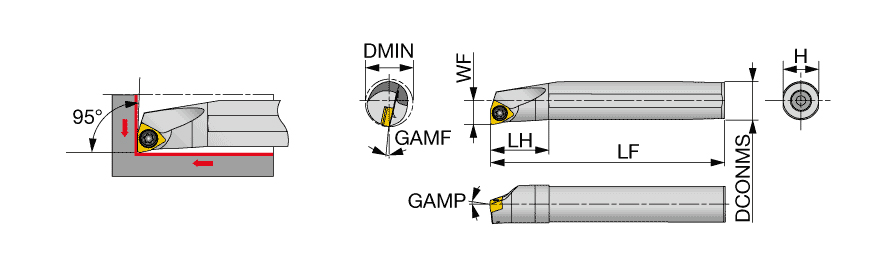

E12Q-SWLXR04-D140
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | For 80deg Trigon insert | For Miniature machining | |
| Functional Length (LF) | 180 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 27 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 7 mm | Tool Type | TOOLHOLDERS - FOR BORING & INTERNAL PROFILING |
| Master Insert Identification (MIID) | WXGU040304L | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 14 mm | Measurement Type | Metric |
Product Features

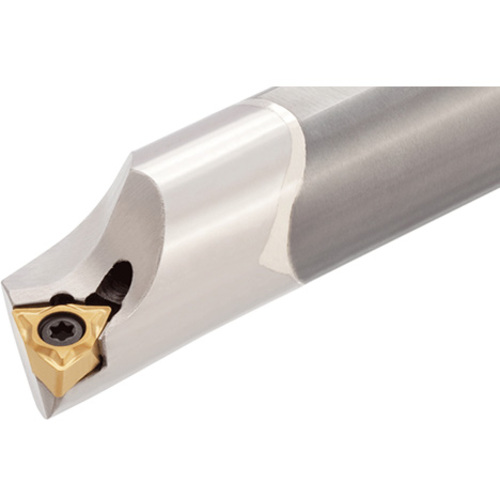

| Family Description | Screw-on boring bar for trigon insert with 6 edges | Country of Origin | JAPAN |
| Remarks | The right hand insert (R) is used for the left hand toolholders (SWLXL04 D**), and the left hand insert (L) is used for the right hand toolholders (SWLXR04 D**). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.635
