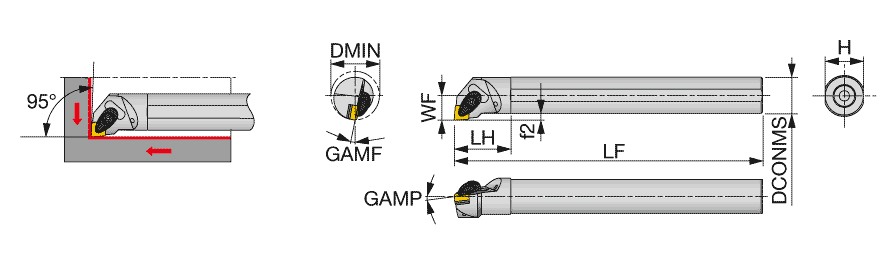

A24-ACLNR4-D32
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 14″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 2.16″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.45″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Width (WF) | 0.89″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMG432 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp boring bar, for negative 80 deg rhombic insert | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
6.439
