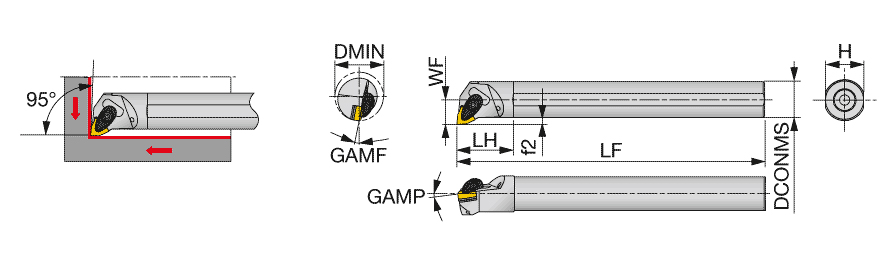

A32-AWLNL4-D40
| Connection Diameter Machine Side (DCONMS) | 2″ | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 16″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 2.55″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.85″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 1.37″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG432 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2-1/2″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp boring bar, for negative trigon insert | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
13.007
