A20-AVUNL3-D25

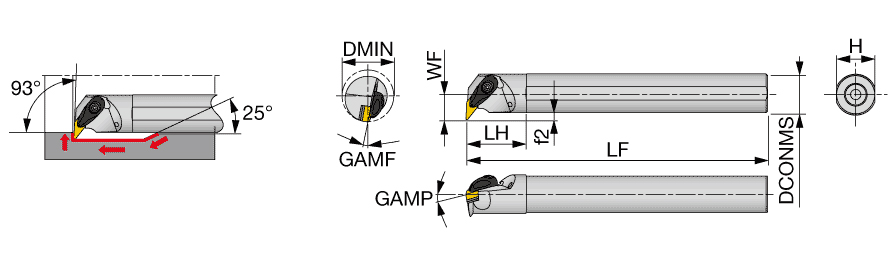

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 14″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1.96″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.18″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 0.859″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VNMG332 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.56″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp boring bar, for negative 35 deg rhombic inserts. | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
4.409
