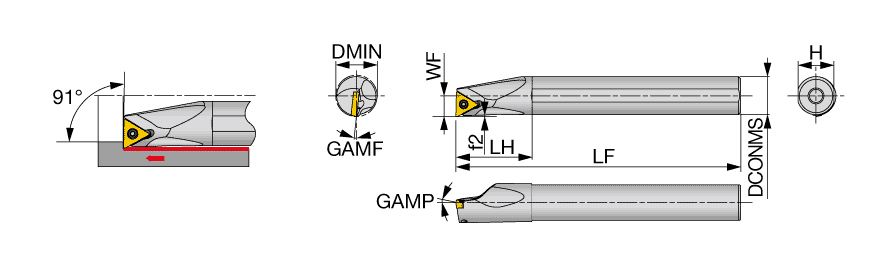

E12-STFPR3-D16
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 7″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1.438″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.725″ | Rake Angle Radial (GAMF) | -2 Degrees |
| Functional Width (WF) | 0.594″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT32.52 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 1″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on boring bar, for posi triangle insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STFPL** type), and the left hand insert (L) is used for the right hand toolholders (STFPR** type). Inserts of TPGH, TPGM and TPGA are not applicable. Torque:Recommended torque (Nm) for clamping |
