E04G-SEXPR03-D045

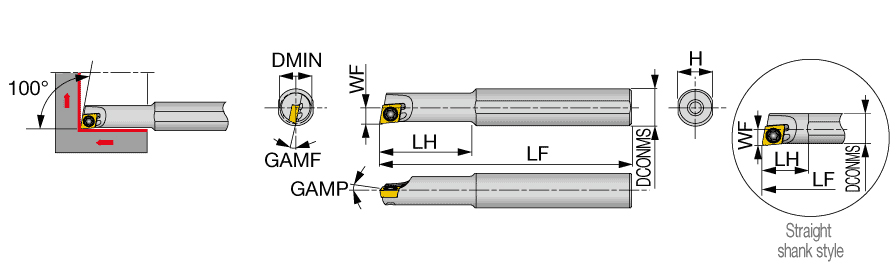

| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | | For 75deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 90 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 9 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 3.8 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 2.3 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | EPGT03X102 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 4.5 mm | Measurement Type | Metric |
Product Features

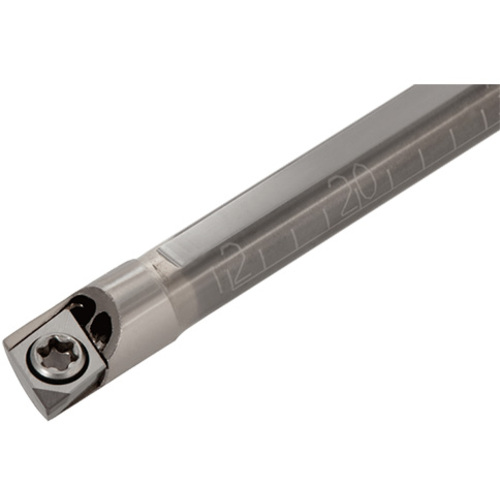

| Family Description | Screw-on boring bar, for posi 75 deg rhombic insert with 11 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SEXPL** type), and the left hand insert (L) is used for the right hand toolholders (SEXPR** type). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Additional Fees and Notes
0
Package Weight
31
