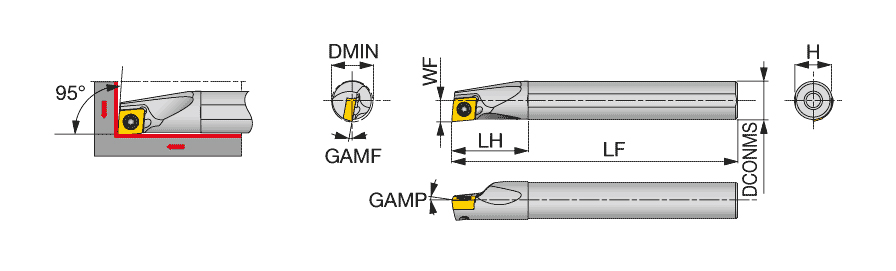

A07G-SCLCR04-D080
| Connection Diameter Machine Side (DCONMS) | 7 mm | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 90 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 6.8 mm | Rake Angle Radial (GAMF) | -11 Degrees |
| Functional Width (WF) | 4 mm | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Master Insert Identification (MIID) | CCGT04T102 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 8 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on boring bar, for posi 80 deg rhombic insert with 7 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand toolholders (SCLCR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.084
