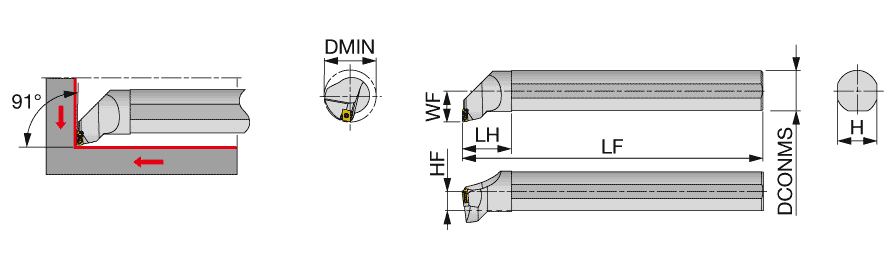

S40V-TLANR12-D530
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | For Rectangular insert | |
| Functional Length (LF) | 400 mm | Rake Angle Axial (GAMP) | -15 Degrees |
| Head Length (LH) | 50 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Height (H) | 37 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Master Insert Identification (MIID) | LNMX120408L | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 53 mm |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation | Country of Origin | ISRAEL |
| Remarks | The right hand insert (R) is used for the left hand toolholders (TLANL** type), and the left hand insert (L) is used for the right hand toolholders (TLANR** type). |
Shipping Info
Package Weight
8.113
