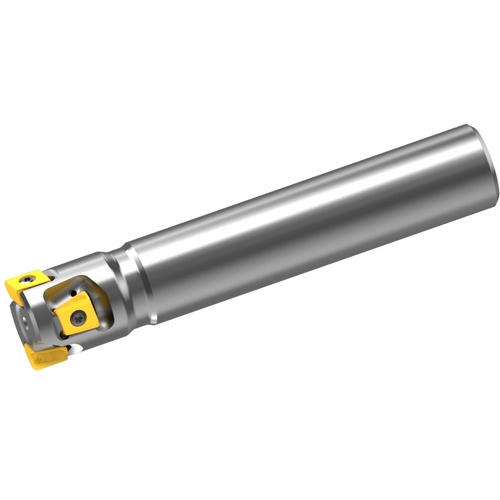

VPX200R222SA20S01404 EM
Indexable End Mill; 22 mm Dia. × 14 mm LOC × 20 mm Shank Dia. ; 4 FL ; 90 Degrees ; Series VPX200_LONG
| Cutting Diameter (DC/DCX) | 22 mm | Functional Length (LF) | 115 mm |
| Cutting Diameter (DC) | 22 mm | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.16 Degrees | Series/List # | VPX200_LONG |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Head Length (LH) | 30 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
