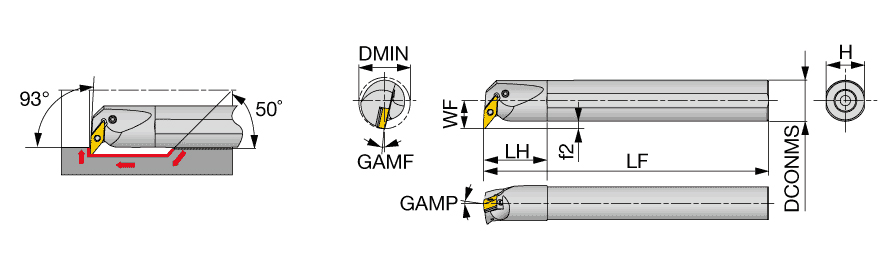

A25R-PVUNR16-D370
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 200 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 45 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VNMG160408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 37 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever-lock boring bar for negative 35 deg rhombic insert | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.490
