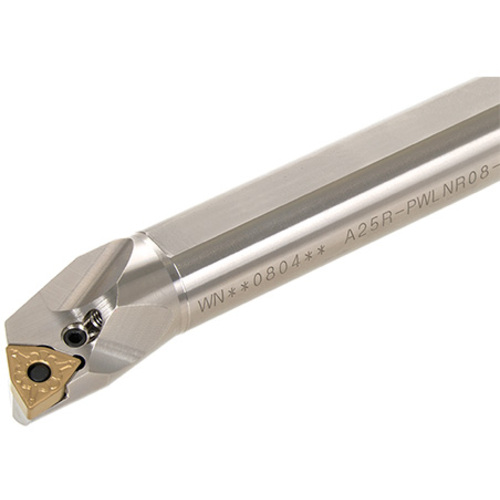

A20Q-PWLNR06-D250

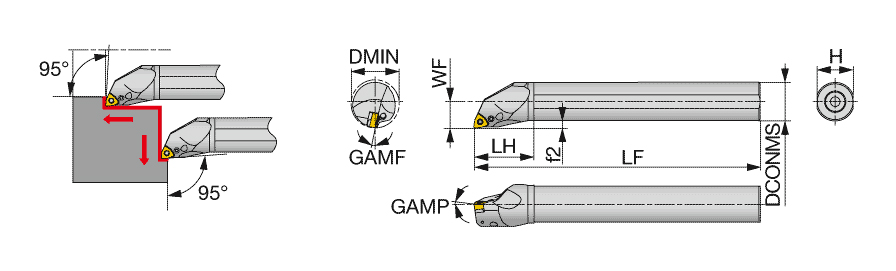

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 180 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 36 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 13 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG060408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever-lock boring bar for negative trigon insert | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.84
