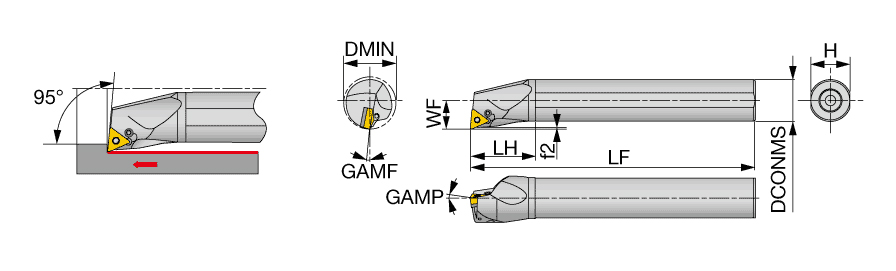

A20Q-PTUNR11-D250
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 180 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 36 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 13 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMG110304 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Measurement Type | Metric |
Product Features

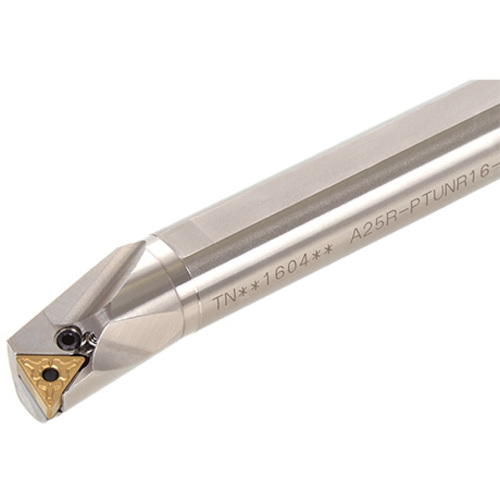

| Family Description | Lever-lock boring bar for negative triangle insert | Country of Origin | JAPAN |
| Remarks | The insert hole conforms to the ISO standard. Tool holder length may be different to the ISO standard. When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PTUNL** type), and the left hand insert (L) is used for the right hand toolholders (PTUNR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.844
