A40T-PTFNL16-D500

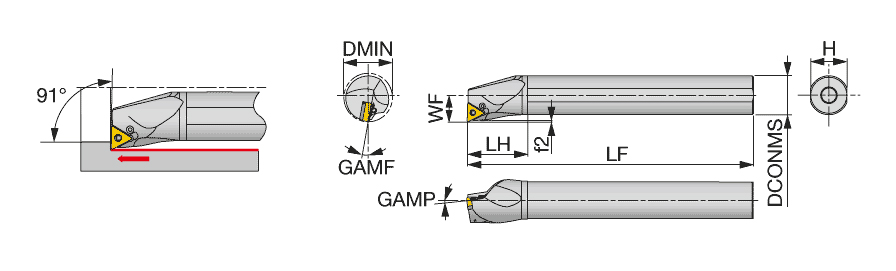

| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 300 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 60 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 37 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 27 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMG160408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
Product Features

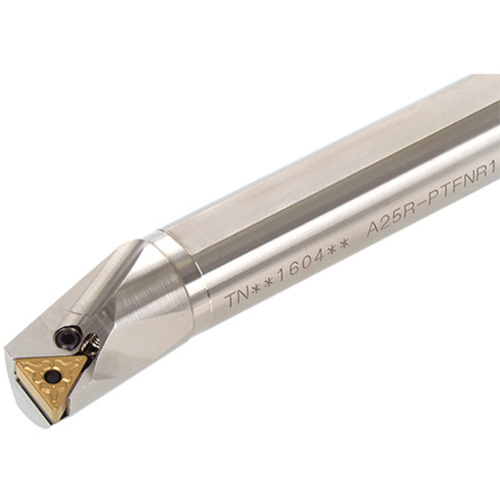

| Family Description | Lever-lock boring bar for negative triangle insert | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PTFNL** type), and the left hand insert (L) is used for the right hand toolholders (PTFNR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
5.644
