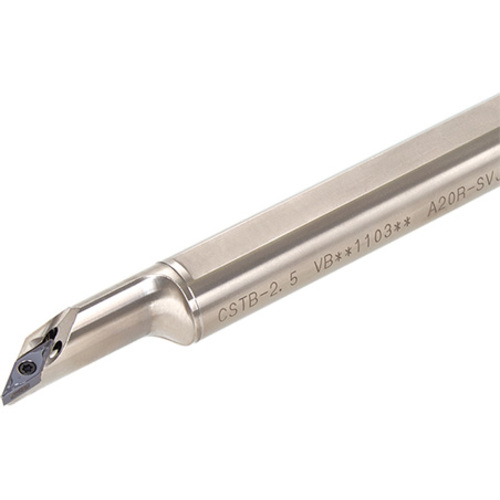

A10-SVJBR2-D16

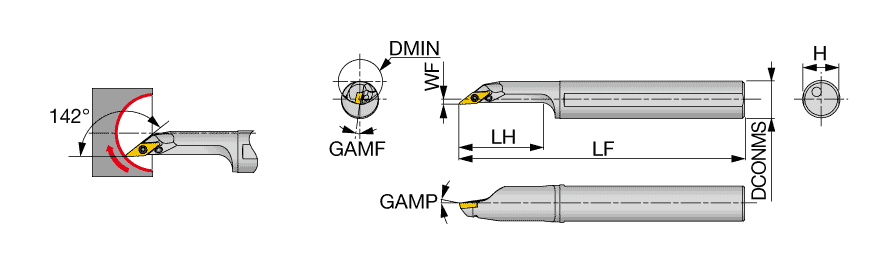

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 7″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1-1/4″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Height (H) | 0.6″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 0.156″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VBMT221 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on boring bar, for posi 35 deg rhombic insert with 5 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SVJBL** type), and the left hand insert (L) is used for the right hand toolholders (SVJBR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.567
