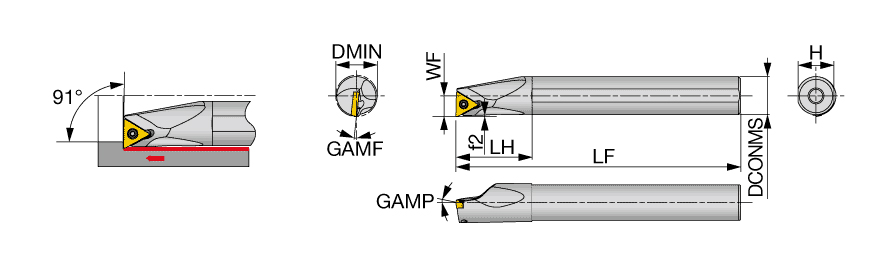

E10M-STFPL1102-D120
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 150 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 25 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 9 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 6.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT110204 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 12 mm | Measurement Type | Metric |
Product Features

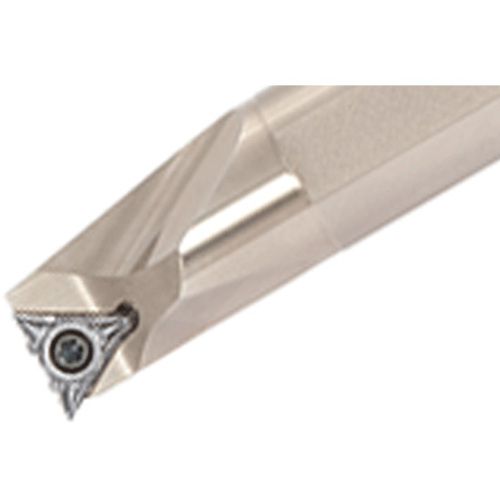

| Family Description | Screw-on boring bar, for posi triangle insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STFPL** type), and the left hand insert (L) is used for the right hand toolholders (STFPR** type). Inserts of TPGH, TPGM and TPGA are not applicable. Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.370
