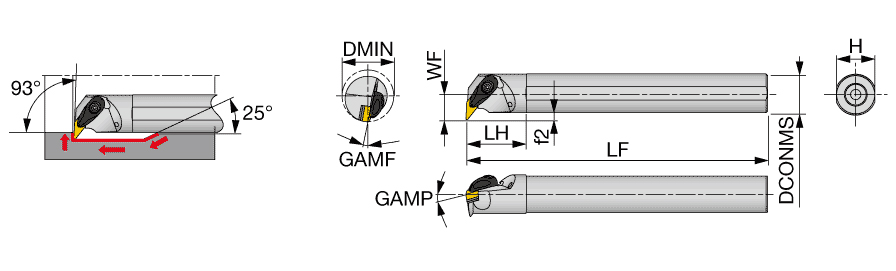

A40T-AVUNR16-D500
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 300 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 55 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 37 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Width (WF) | 27 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VNMG160408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp boring bar, for negative 35 deg rhombic inserts. | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
5.600
