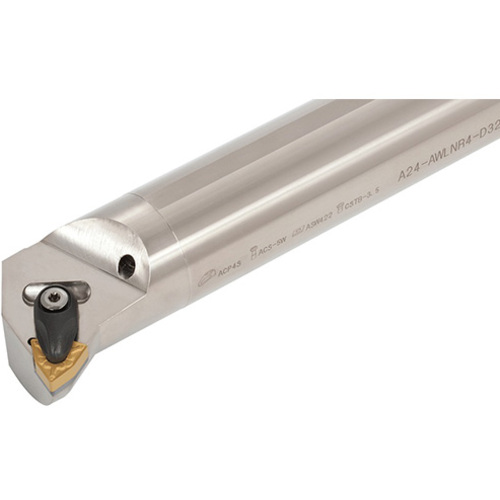

A32S-AWLNR08-D400

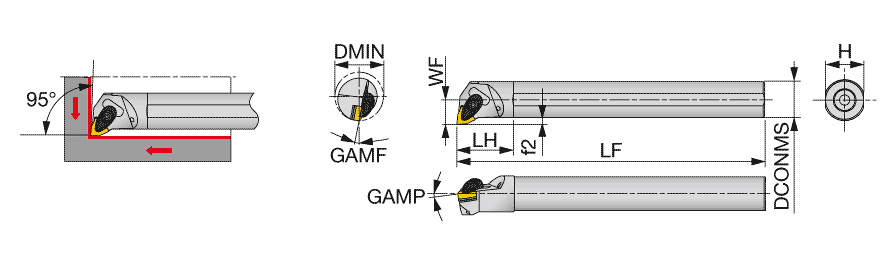

| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 250 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 50 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 30 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Master Insert Identification (MIID) | WNMG080408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp boring bar, for negative trigon insert | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
2.895
