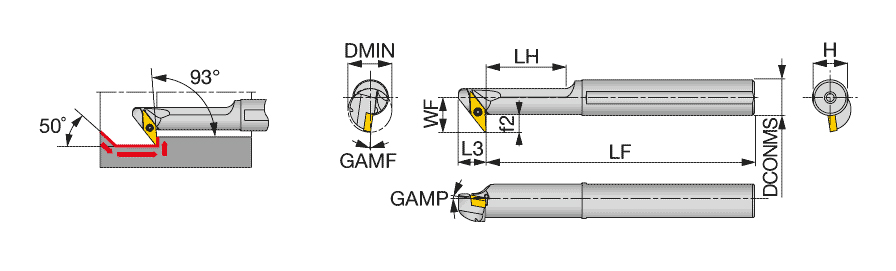

A12-SVZCR2-D16
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 10″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1.425″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.725″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 0.593″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VCMT221 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Measurement Type | Inch |
Product Features

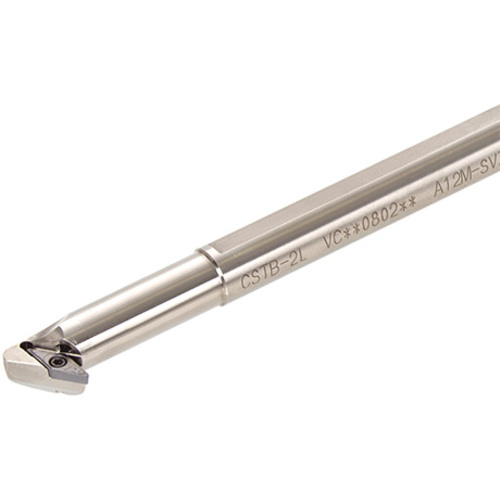

| Family Description | Screw-on boring bar, for posi 35 deg rhombic insert with 7 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the right hand toolholders (SVZCR** type), and the left hand insert (L) is used for the left hand toolholders (SVZCL** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.378
