A06-STUPR2-D08

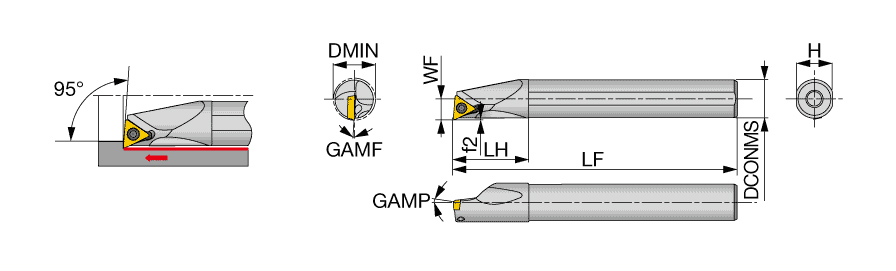

| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 5″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 3/4″ | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 0.35″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 0.281″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPGT21.51 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1/2″ | Measurement Type | Inch |
Product Features

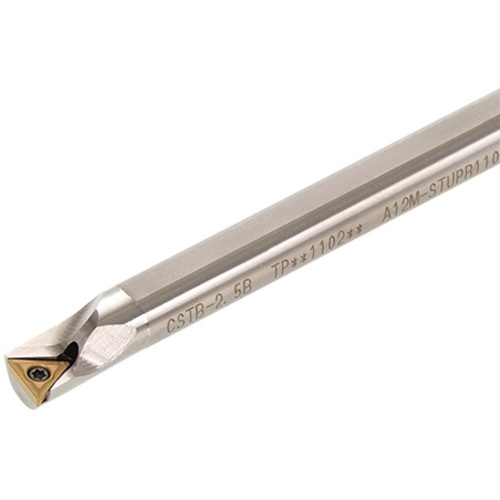

| Family Description | Screw-on boring bar, for posi triangle insert with 11 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STUPL** type), and the left hand insert (L) is used for the right hand toolholders (STUPR** type). Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.174
