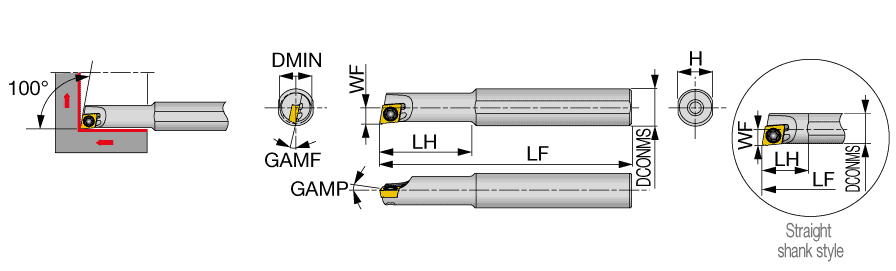

A05-SEXPR04-D04
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Application | | For 75deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 5″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 0.812″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.287″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 1/8″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | EPGT521 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1/4″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on boring bar, for posi 75 deg rhombic insert with 11 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SEXPL** type), and the left hand insert (L) is used for the right hand toolholders (SEXPR** type). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0
