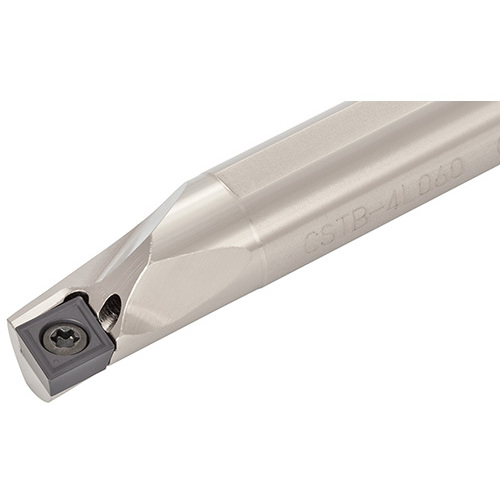

E10-SCLPR3-D14

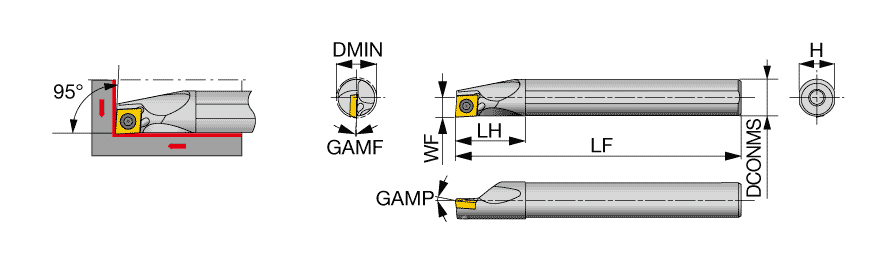

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 7″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1-1/4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.6″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 0.531″ | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Master Insert Identification (MIID) | CPMT32.52 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 7/8″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on boring bar, for posi 80 deg rhombic insert with 11 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLPL** type), and the left hand insert (L) is used for the right hand toolholders (SCLPR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.009
