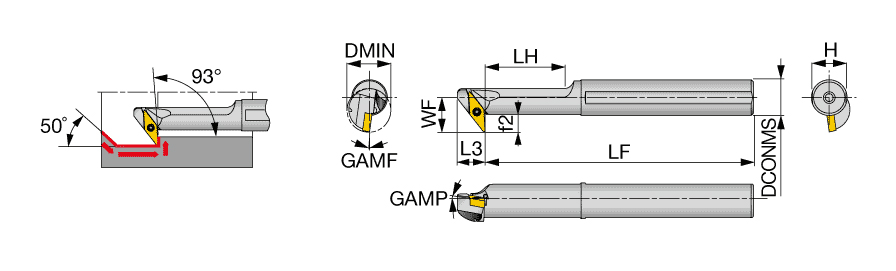

A32T-SVZBL16-D400
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 300 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 72 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 30 mm | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 27.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VBMT160408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
Product Features

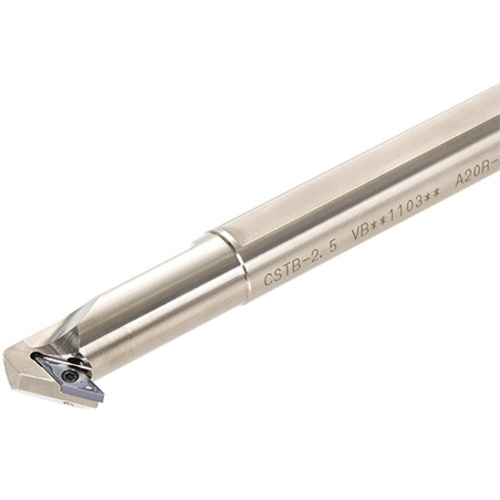

| Family Description | Screw-on boring bar, for posi 35 deg rhombic insert with 5 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the right hand toolholders (SVZBR** type), and the left hand insert (L) is used forthe left hand toolholders (SVZBL** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
3.697
