A12M-SVQBR11-D170

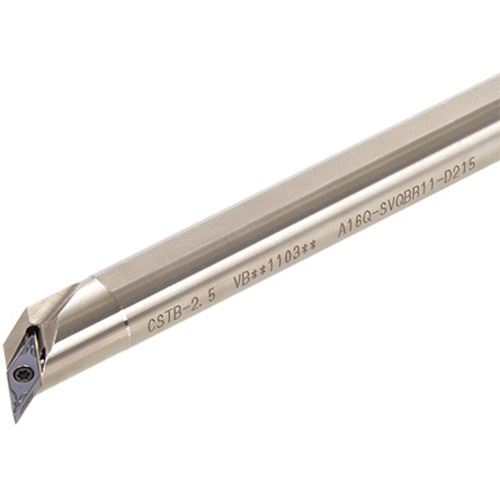

Screw-on boring bar, for posi 35 deg rhombic insert with 5 deg clearance

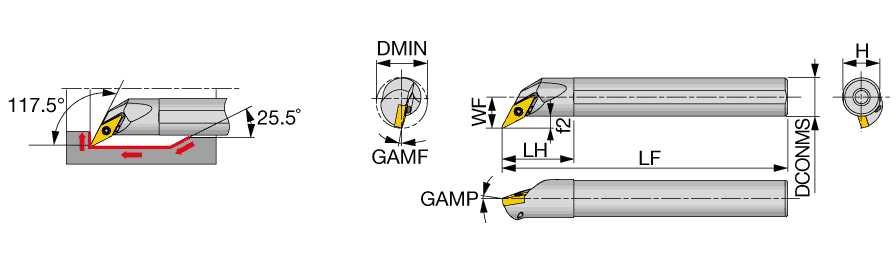

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 150 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 24 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 10.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VBMT110304 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 17 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on boring bar, for posi 35 deg rhombic insert with 5 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SVQBL** type), and the left hand insert (L) is used for the right hand toolholders (SVQBR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.311
