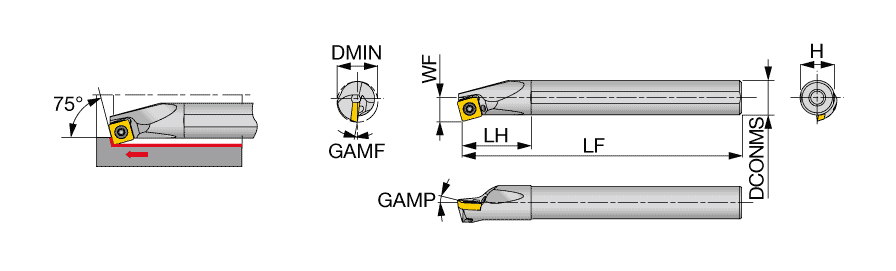

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For Miniature machining | For Square insert | |
| Functional Length (LF) | 250 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 45 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -2 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | SPMT120408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 31 mm | Measurement Type | Metric |

Product Features

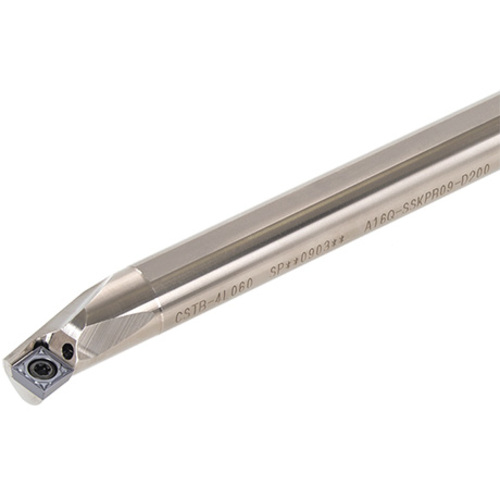

| Family Description | Screw-on boring bar, for posi square insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SSKPL** type), and the left hand insert (L) is used for the right hand toolholders (SSKPR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.978
