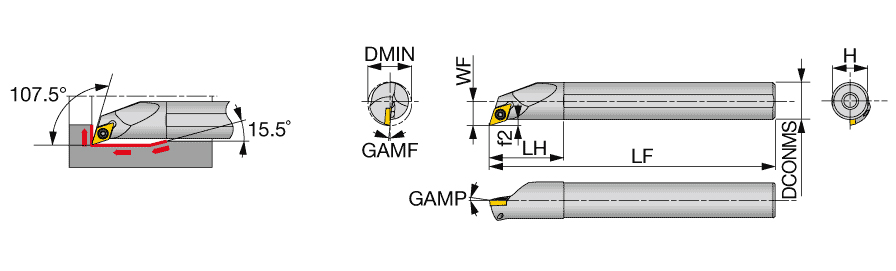

A20R-SDQCR11-D250
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 200 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 36 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 13.7 mm | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Master Insert Identification (MIID) | DCMT11T308 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Measurement Type | Metric |
Product Features

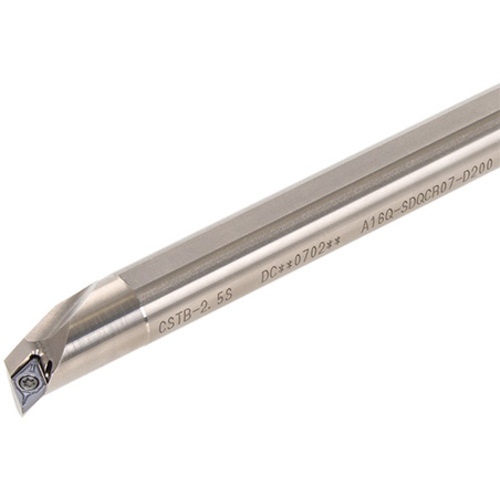

| Family Description | Screw-on boring bar, for posi 55 deg rhombic insert with 7 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SDQCL** type), and the left hand insert (L) is used for the right hand toolholders (SDQCR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.986
