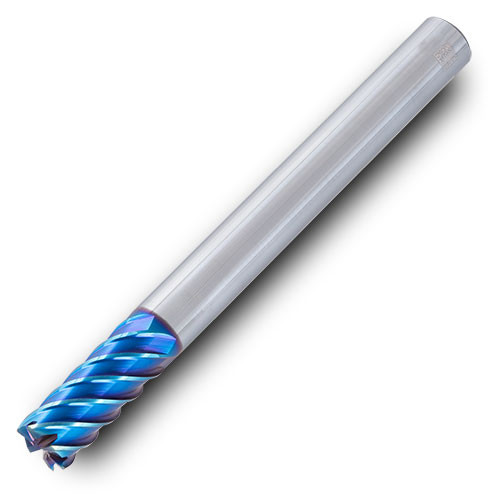

48J00606T7RJ03 IN2203
SQ End Mill; 0.236″ Dia. × 0.236″ LOC × 0.236″ Shank Dia. × 1.968″ OAL ; 0.01″ RE ; 6 FL ; Carbide ; AlTiCrSiN
| Cutting Diameter (DC) | 0.236″ | Application | | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 0.236″ | Grade | IN2203 |
| Overall Length (OAL) | 1.968″ | Neck Diameter (DN) | 0.23″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiCrSiN | Body Material | Carbide |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.236″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Finishing hard materials up to 65 HRC | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.05
