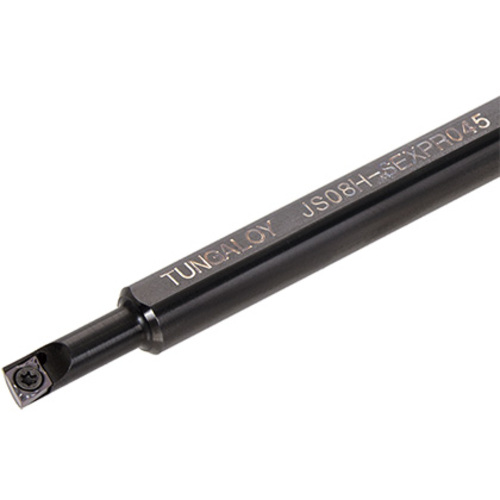

JS08H-SEXPR045

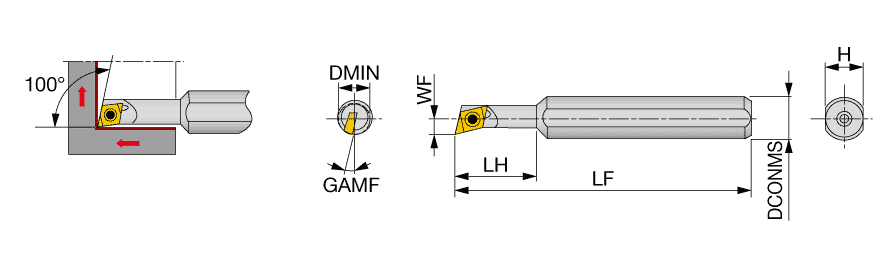

| Connection Diameter Machine Side (DCONMS) | 8 mm | Minimum Bore Diameter (DMIN) | 5.5 mm |
| Functional Length (LF) | 100 mm | Application | | For 75deg Rhombic insert | For Miniature machining | |
| Head Length (LH) | 16 mm | Rake Angle Radial (GAMF) | 12 Degrees |
| Shank Height (H) | 7 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 2.7 mm | Body Material | Steel |
| Master Insert Identification (MIID) | EPGT040104 | Measurement Type | Metric |
Product Features
| Family Description | Screw-on boring bar, for posi 75 deg rhombic insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SEXPL** type), and the left hand insert (L) is used for the right hand toolholders (SEXPR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.106
