S20Q-PWLNL06

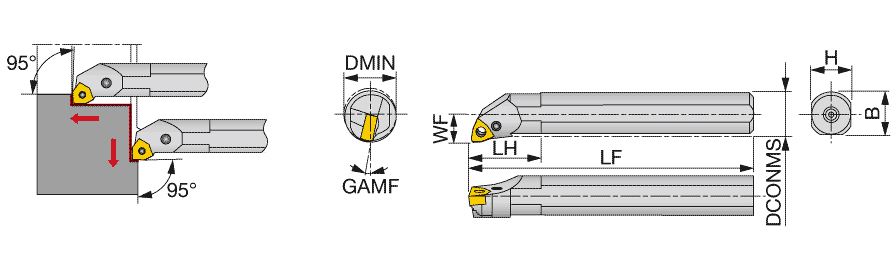

| Connection Diameter Machine Side (DCONMS) | 20 mm | Minimum Bore Diameter (DMIN) | 25 mm |
| Functional Length (LF) | 180 mm | Application | | For 80deg Trigon insert | |
| Head Length (LH) | 35 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Shank Width (B) | 19 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 13 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WNMG060408 | Measurement Type | Metric |
Product Features
| Family Description | Lever-lock boring bar, for negative trigon insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.95
