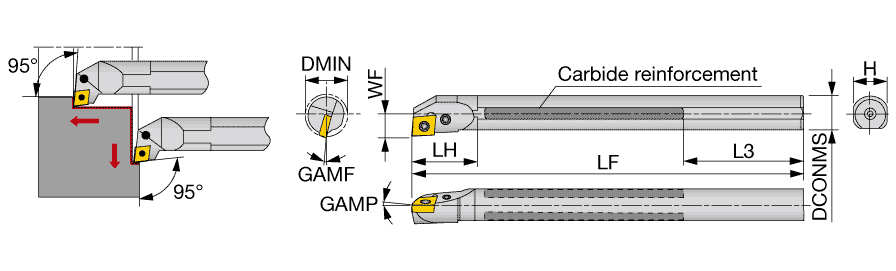

T32U-PCLNR12C
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 350 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 50 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 30 mm | Rake Angle Radial (GAMF) | -11 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMG120408 | Body Material | TSUPPARI |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
Product Features
| Family Description | Tsuppari-Ichiban, Lever-lock boring bar, for Negative 80 deg rhombic insert | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PCLNL** type), and the left hand insert (L) is used for the right hand toolholders (PCLNR** type). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
4.762
