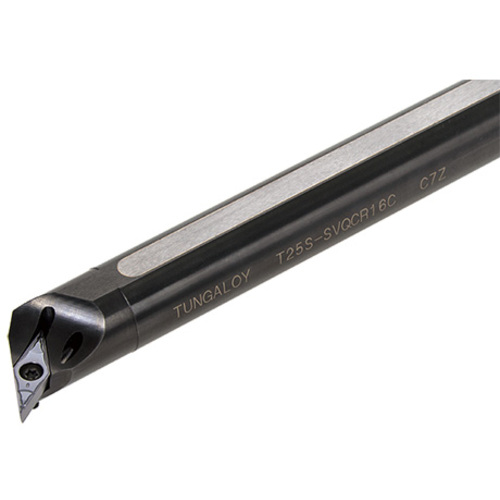

T25S-SVQCR16C

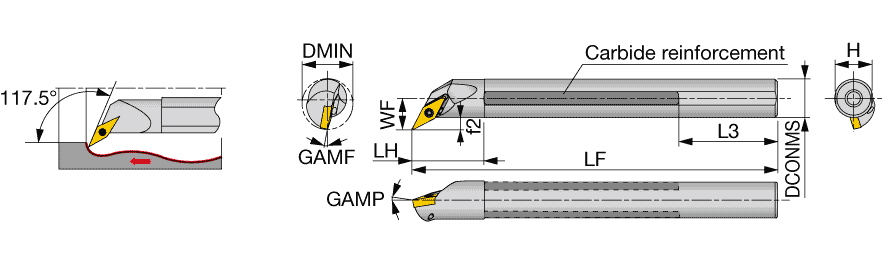

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 250 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 40 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VCMT160408 | Body Material | TSUPPARI |
| Minimum Bore Diameter (DMIN) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Tsuppari-Ichiban, Screw-on boring bar, for posi 35 deg rhombic insert with 7 deg clearance | Country of Origin | JAPAN |
| Remarks | The hole of inserts conforms to ISO standard. When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SVQCL** type), and the left hand insert (L) is used for the right hand toolholders (SVQCR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
2.028
